In the previous section the fundamentals of the metal casting process, as the basic starting
point for metal fabrication and part manufacture, were covered. Setup and design of a system to perform
a casting operation was explained. Main topics were molds, patterns, cores, and the elements of a gating system.
In this section we will explain the operation itself. We will begin by assuming that there is a mold with a proper gating system
in place and prepared for the metal casting operation.
Pouring of the Metal: When manufacturing by metal casting, pouring refers to the process
by which the molten metal is delivered into the mold. It involves its flow through the gating system and into
the main cavity (casting itself).
Goal: Metal must flow into all regions of the mold, particularly the casting's main
cavity, before solidifying.
Factors Of Pouring:

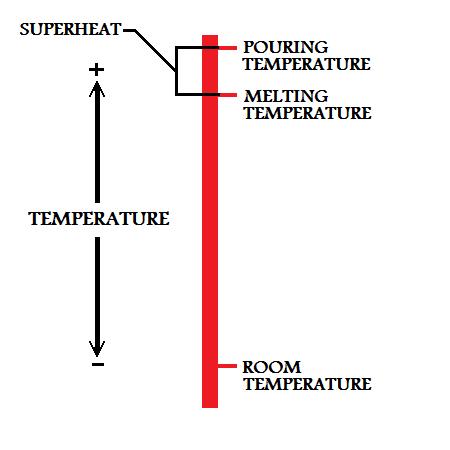

Pouring Temperature: Pouring temperature refers to the initial temperature of the molten
metal used for the casting as it is poured into the mold. This temperature will obviously be higher than the
solidification temperature of the metal. The difference between the solidification temperature and the pouring temperature of
the metal is called the superheat.
Pouring Rate: Volumetric rate in which the liquid metal is introduced into the mold.
Pouring rate needs to be carefully controlled during the metal casting operation, since it has certain effects on the
manufacture of the part. If the pouring rate is too fast, then turbulence can result. If it is too slow, the metal may
begin to solidify before filling the mold.
Turbulence: Turbulence is inconsistent and irregular variations in the
speed and direction of flow throughout the liquid metal as it travels though the casting. The random impacts caused by
turbulence, amplified by the high density of liquid metal, can cause mold erosion. An undesirable effect in the manufacturing
process of metal casting, mold erosion is the wearing away of the internal surface of the mold. It is particularly detrimental if it
occurs in the main cavity, since this will change the shape of the casting itself. Turbulence is also bad because it can
increase the formation of metal oxides which may become entrapped, creating porosity in the solid casting.
Fluidity: Pouring is a key element in the manufacturing process of metal casting
and the main goal of pouring is to get metal to flow into all regions of the mold before solidifying. The properties of
the melt in a casting process are very important. The ability of a
particular casting melt to flow into a mold before freezing is crucial in the consideration of metal casting
techniques. This ability is termed the liquid metals fluidity.

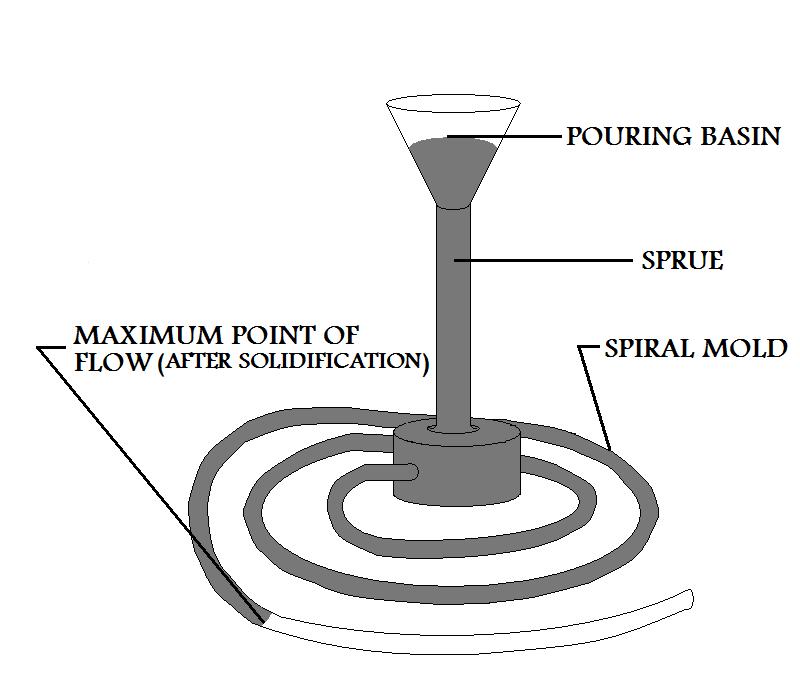

Test for Fluidity: In manufacturing practice, the relative fluidity of a certain metal casting
melt can be quantified by the use of a spiral mold. The geometry of the spiral mold acts to limit the flow of liquid metal
through the length of its spiral cavity. The more fluidity possessed by the molten metal, the farther into the spiral it will be
able to flow before hardening. The maximum point the metal reaches upon the casting's solidification may be indexed as that
melts relative fluidity.
Spiral Mold Test
How To Increase Fluidity In Metal Casting:
-Increase the superheat: If a melt is at a higher temperature relative to its freezing point, it will remain in the
liquid state longer throughout the metal casting operation, and hence its fluidity will increase. However, there are disadvantages
to manufacturing a metal casting with an increased superheat. It will increase the melts likelihood to saturate gases,
and the formation of oxides. It will also increase the molten metals ability to penetrate into the surface of the mold material.
-Choose an eutectic alloy, or pure metal: When selecting a manufacturing material, consider that
metals that freeze at a constant temperature have a higher fluidity.
Since most alloys freeze over a temperature range, they will develop solid portions that will interfere with the flow
of the still liquid portions, as the freezing of the metal casting occurs.
-Choose a metal with a higher heat of fusion: Heat of fusion is the amount of energy involved in the liquid-solid
phase change. With a higher heat of fusion, the solidification of the metal casting will take
longer and fluidity will be increased.
Shrinkage: Most materials are less dense in their liquid state than in their solid state,
and more dense at lower temperatures in general. Due to this nature, a metal casting undergoing solidification will tend to decrease
in volume. During the manufacture of a part by casting this decrease in volume is termed shrinkage. Shrinkage of the casting
metal occurs in three stages:

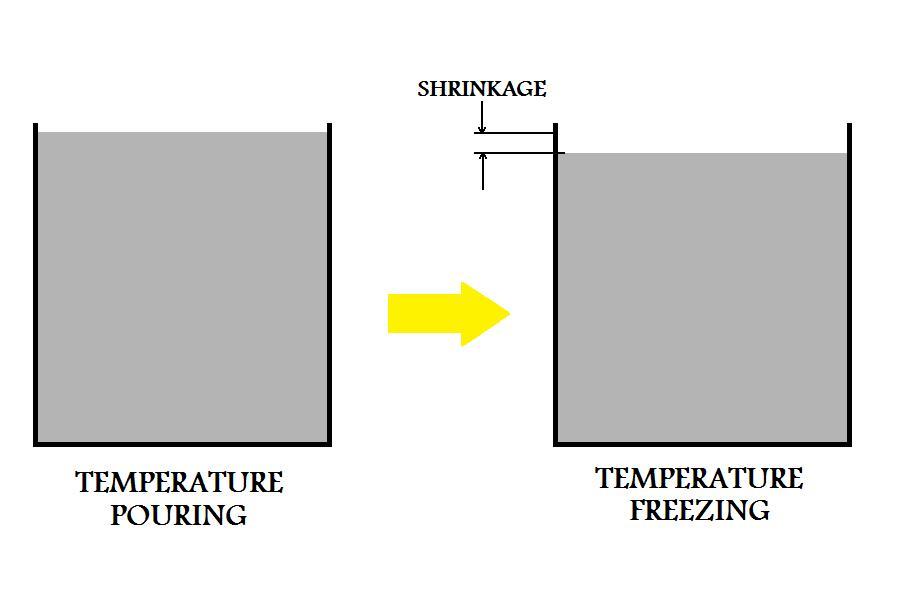

1. Decreased volume of the liquid as it goes from the pouring temperature to the freezing temperature.

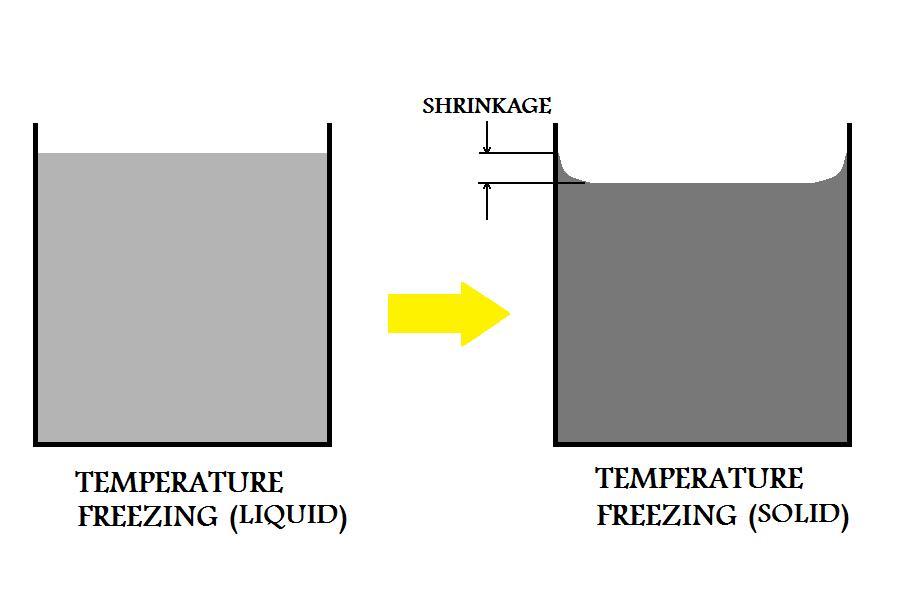

2. Decreased volume of the material due to solidification.

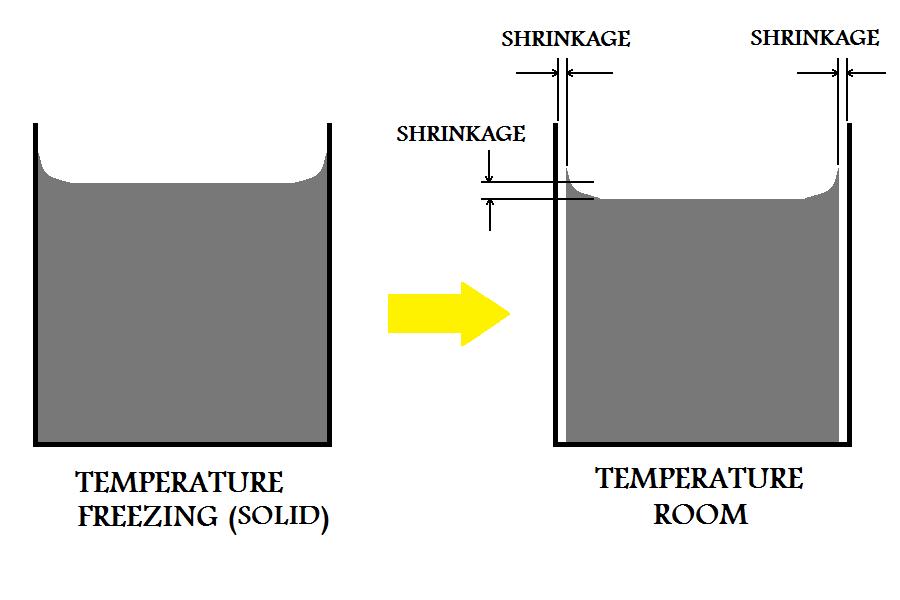

3. Decreased volume of the material as it goes from freezing temperature to room temperature.
Risers: When designing a setup for manufacturing a part by metal casting, risers are almost always
employed. As the metal casting begins to experience shrinkage, the mold will need additional material to compensate for the
decrease in volume. This can be accomplished by the employment of risers. Risers are an important component in the casting's
gating system. Risers, (sometimes called feeders), serve to contain additional molten metal. During the metal's
solidification process, these reservoirs feed extra material into the casting as shrinkage is occurring. Thus, supplying it with
an adequate amount of liquid metal. A successful riser will remain molten until after the

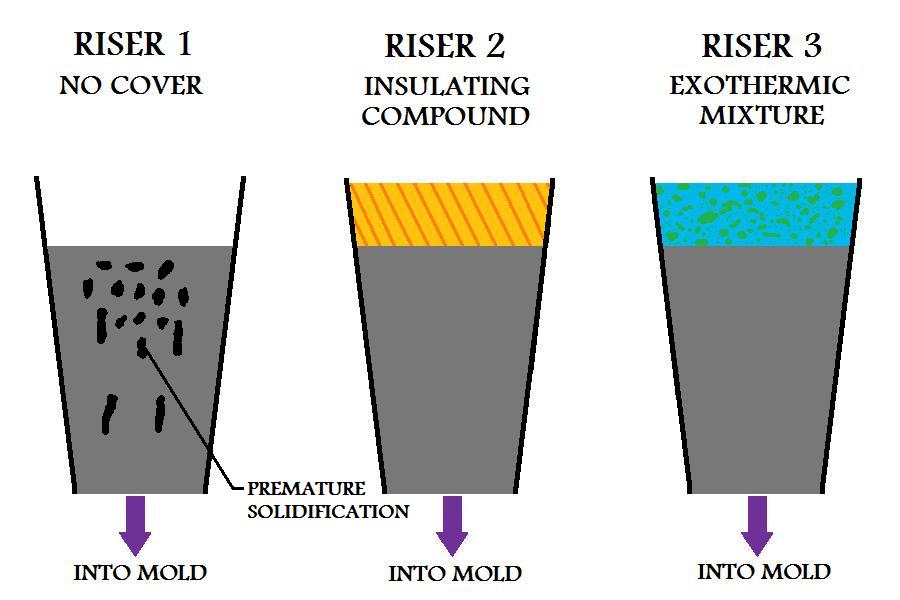

metal casting solidifies. In order to
reduce premature solidification of sections within the riser, in many manufacturing operations, the tops of open risers may
be covered with an insulating compound, (such as a refractory ceramic), or an exothermic mixture.

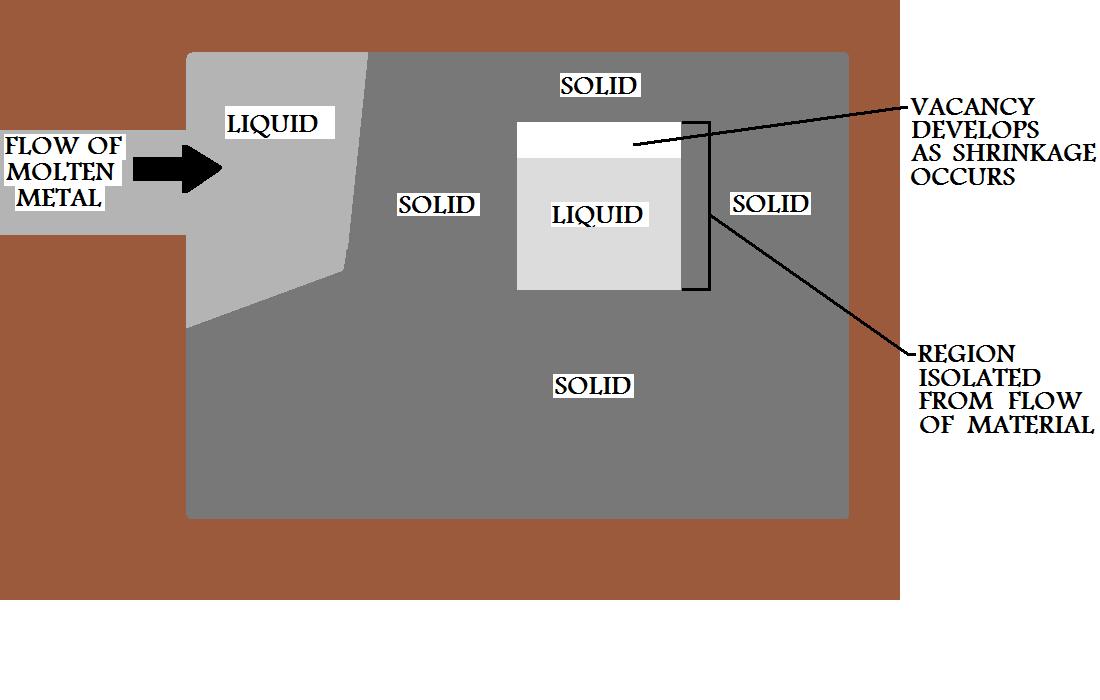

One of the biggest problems caused by shrinkage, during the manufacture of a cast part, is porosity.
It happens at different sites within the material, when liquid metal can not reach sections of the metal casting
where solidification is occurring. As the isolated liquid metal shrinks, a porous or vacant region develops.
Development of these regions can be prevented during the manufacturing operation, by strategically planning the flow
of the liquid metal into the casting through good mold design, and by the employment of directional solidification. These
techniques will be covered in detail in the gating system and mold design
section. Note that gases trapped within the molten metal can also be
a cause of porosity. The effects of gases while manufacturing parts by metal casting
will be discussed in the gases section.
Although proper metal casting methods can help mitigate the effects of shrinkage, some shrinkage, (like that which occurs
in the cooling of the work metal from the top of the solid state to room temperature), can not be avoided.
Therefore, the impression from which the metal casting is made is calculated oversized to the actual part, and the thermal
expansion properties of the material used to manufacture the part will be necessary to include in the calculation.
Other Defects: The formation of vacancies within the work material
due to shrinkage is a primary concern in the metal casting process. There are numerous other defects
that may occur, falling into various categories.
Metal Projections: The category of metal projections includes all unwanted material
projected from the surface of the part, (ie. fins, flash, swells, ect.). The projections could be small, creating
rough surfaces on the manufactured part, or be gross protrusions.
Cavities: Any cavities in the material, angular or rounded, internal or
exposed, fit into this category. Cavities as a defect of metal casting shrinkage or gases would be included here.
Discontinuities: Cracks, tearing, and cold shuts in the part qualify as
discontinuities. Tearing occurs when the metal casting is unable to shrink naturally and a point of high tensile stress
is formed. This could occur, for example, in a thin wall connecting two heavy sections. Cold shuts happen when
two relatively cold streams of molten metal meet in the pouring of the casting. The surface at the location
where they meet does not fuse together completely resulting in a cold shut.
Defective Surface: Defects effecting the surface of the manufactured part. Blows,
scabs, laps, folds, scars, blisters, ect.
Incomplete Casting: Sections of the metal casting did not form. In a manufacturing
process causes for incomplete metal castings could be; insufficient amount of material poured, loss of metal from
mold, insufficient fluidity in molten material, cross section within casting's mold cavity is too small, pouring
was done too slowly, or pouring temperature was too low.
Incorrect Dimensions or Shape: The metal casting is geometrically incorrect. This could
be due to unpredicted contractions in the part during solidification. A warped casting. Shrinkage of the metal casting
may have been miscalculated. There may have been problems with the manufacture of the pattern.
Inclusions: Unwanted particles contained within the material act as stress raisers,
compromising the casting's strength. During the manufacturing process, interaction of the molten metal with the
environment, such as the mold surfaces and the outside atmosphere, (chemical reactions with oxygen in particular), can cause
inclusions within a metal casting. As with most casting defects, good mold maintenance and process design is
important in their control.
