Shell mold casting or shell molding is a metal casting
process in manufacturing industry in which the mold is a thin hardened shell of sand
and thermosetting resin binder, backed up by some other material. Shell molding was
developed as a manufacturing process during the mid-20th century in Germany.
Shell mold casting is particularly suitable for steel castings under 20 lbs; however
almost any metal that can be cast in sand can be cast with the shell molding process. Also much
larger parts have been manufactured with shell molding. Typical parts manufactured
in industry using the shell mold casting process include cylinder heads, gears, bushings,
connecting rods, camshafts and valve bodies.
The Process The first step in the shell mold casting
process is to manufacture the shell mold. The sand we use for the shell molding process
is of a much smaller grain size than the typical green sand mold. This fine grained sand

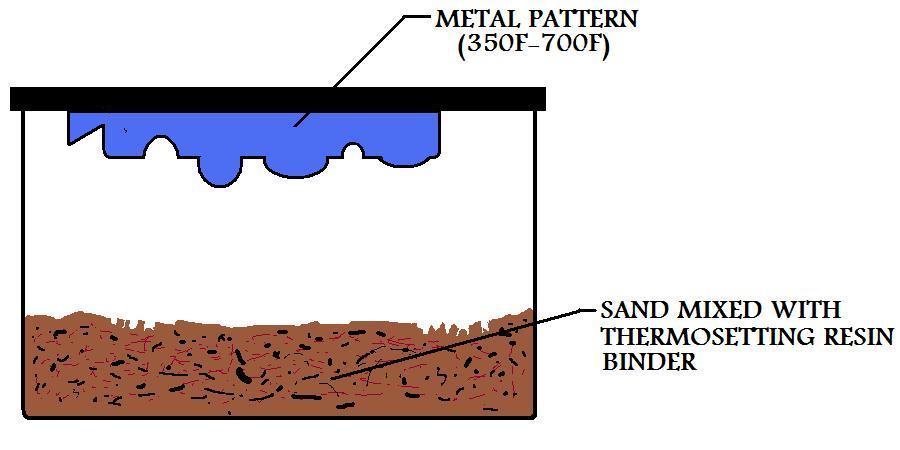

is mixed with a thermosetting resin binder. A special metal pattern is coated with a
parting agent, (typically silicone), which will latter facilitate in the removal of the
shell. The metal pattern is then heated to a temperature of 350F-700F degrees, (175C-370C).

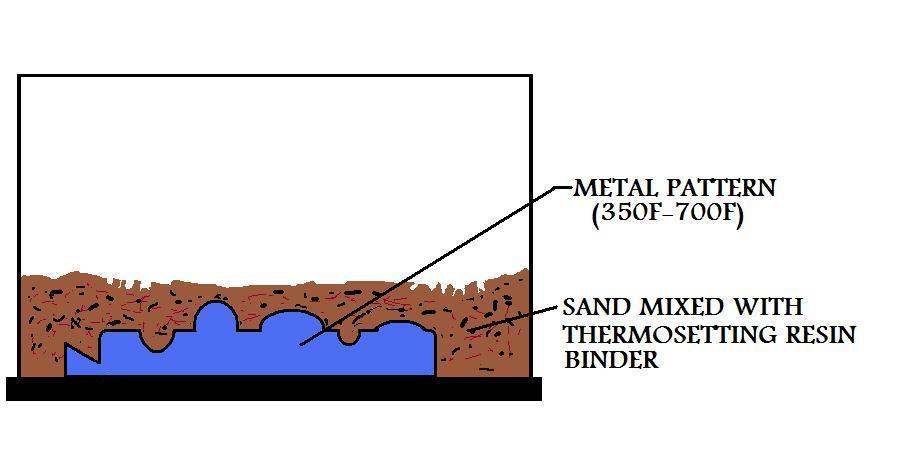

The sand mixture is then poured or blown over the hot casting pattern. Due to the
reaction of the thermosetting resin with the hot metal pattern, a thin shell forms on the
surface of the pattern. The desired thickness of the shell is dependent upon the strength
requirements of the mold for the particular metal casting application. A typical industrial
manufacturing mold for a shell molding casting process could be .3in (7.5mm) thick. The
thickness of the mold can be controlled by the length of time the sand mixture is in
contact with the metal casting pattern.

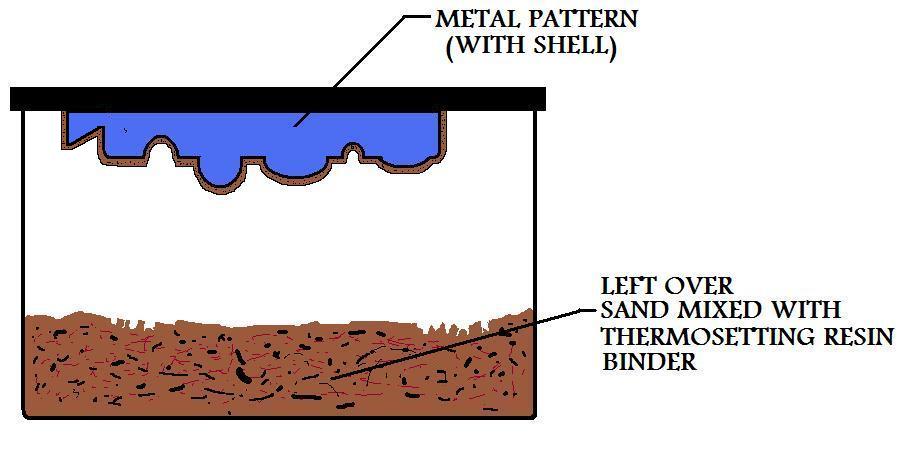

The excess "loose" sand is then removed, leaving the shell and pattern.

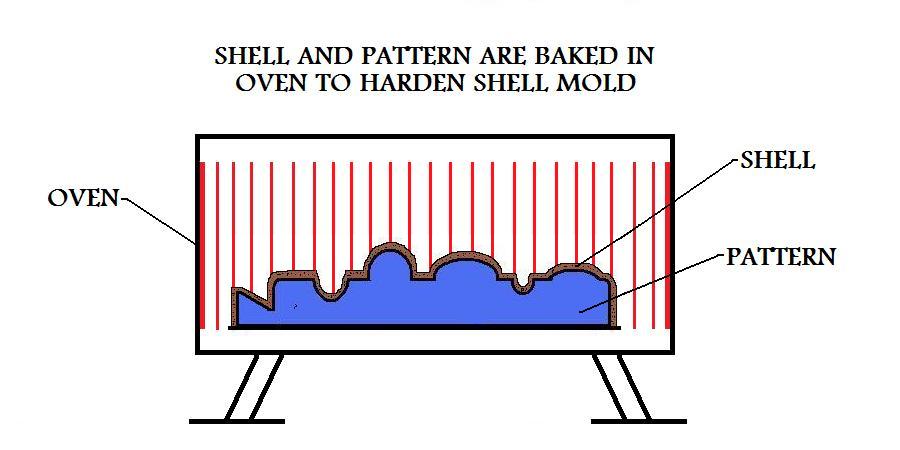

The shell and pattern are then placed in an oven for a short period of time,
(minutes), which causes the shell to harden onto the casting pattern.

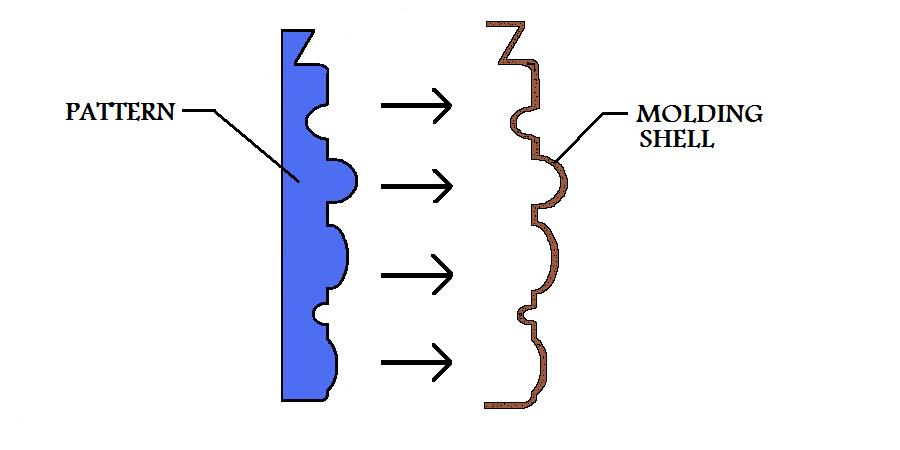

Once the baking phase of the manufacturing process is complete, the hardened shell
is separated from the casting pattern by way of ejector pins built into the pattern.
It is of note that this manufacturing technique used to create the mold in the shell
molding process can also be employed to produced highly accurate fine grained
mold cores for other metal casting processes.

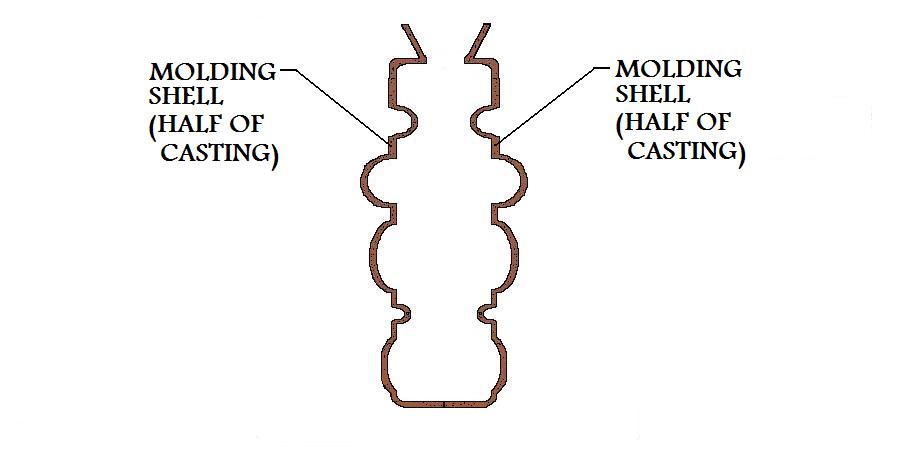

Two of these hardened shells, each representing half the mold for the casting, are
assembled together either by gluing or clamping.
The manufacture of the shell mold is now complete and ready for the pouring of the

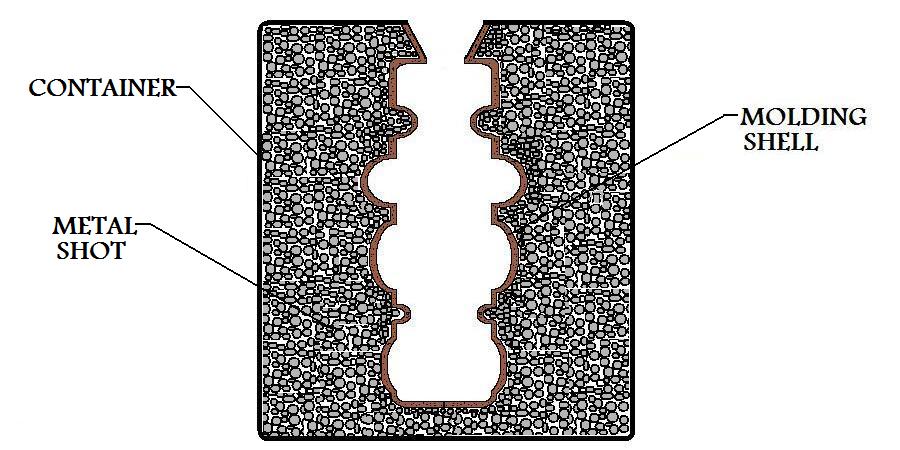

metal casting. In many shell molding processes, the shell mold is supported by sand or
metal shot during the casting process.
Properties and Considerations of Manufacturing
by Shell Mold Casting
- The internal surface of the shell mold is very smooth and rigid. This
allows for an easy flow of the liquid metal through the mold cavity during
the pouring of the casting, giving castings a very good surface finish. Shell
mold casting enables the manufacture of complex parts with thin sections and
smaller projections than green sand mold casting.
- Manufacturing with the shell mold process also imparts high
dimensional accuracy. Tolerances of .010 inches (.25mm) are possible. Further
machining is usually unnecessary when casting by this process.
- Shell sand molds are less permeable than green sand molds and binder may
produce a large volume of gas as it contacts the molten metal being poured for
the casting. For these reasons, shell molds should be well ventilated.
- The expense of shell mold casting is increased by the cost of the thermosetting
resin binder, but decreased by the fact that only a small percentage of sand is
used compared to other sand casting processes.
- Shell mold casting processes are easily automated.
- The special metal patterns needed for shell mold casting are expensive, making
it a less desirable process for short runs. However, manufacturing by shell casting
may be economical for large batch production.
